Model H series – Roof Fan

BENEFITS

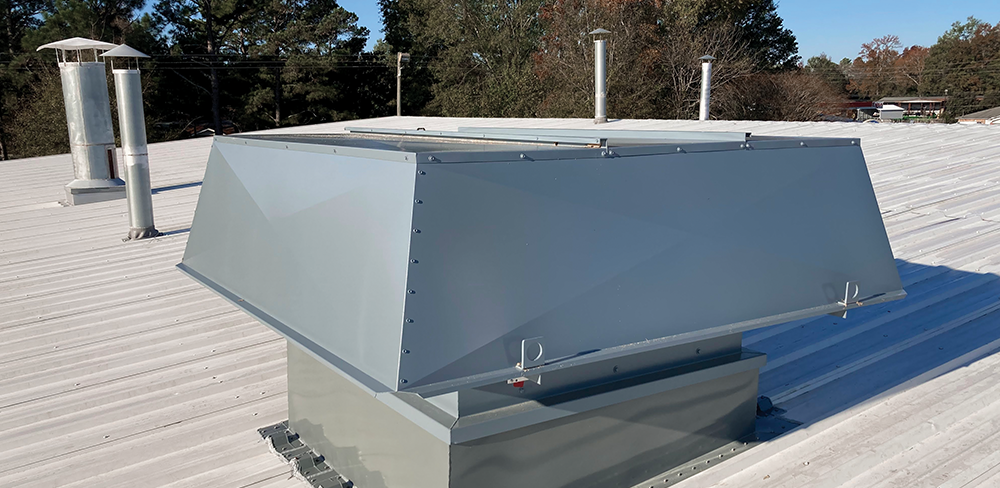

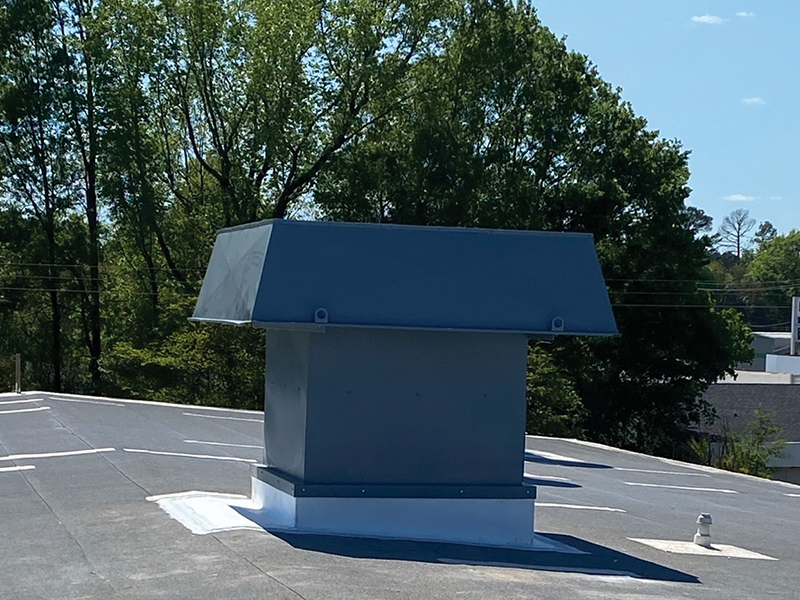

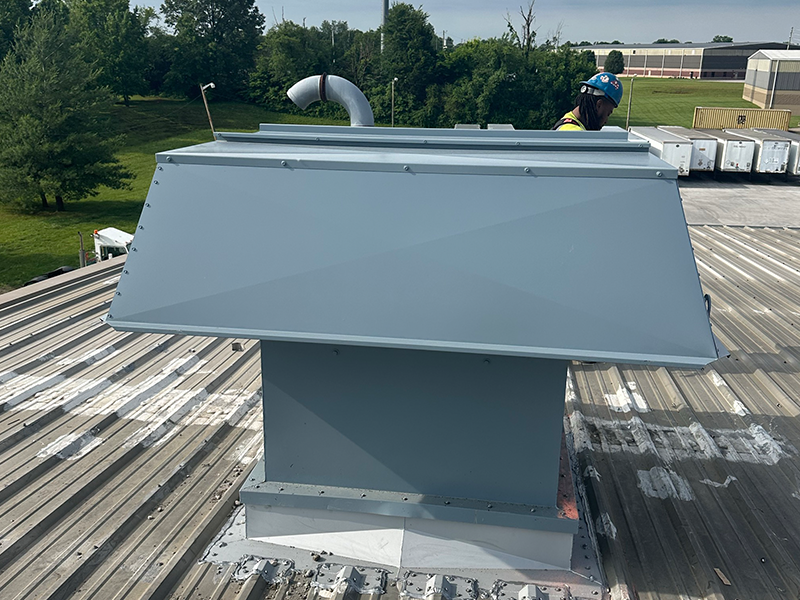

Model H roof fans improve air flow and make any commercial or industrial facility cooler, more comfortable, and safer. The hood guards the opening and protects the air stream.

The powerful TEFC motor provides trouble-free operation. Direct or belt drive models are available.

• Model H uses a direct drive motor, which has no belts to replace or pulleys to adjust for simplified operation.
• Model HB uses a belt drive motor, which includes a variable pitch drive for precise speed control and quieter operation.

All models provide general ventilation in industrial facilities such as mills, factories, and warehouses. These fans can be utilized for fresh air supply or warm air exhaust. Supply fans can be fitted with an internal filter on the hood to limit foreign material from entering the building.

Features

• Sizes: 24” – 72”
• HP: 1 – 15 HP
• Performance: 5,320 – 42,656 CFM
• Static Pressure: 1.25 in. w.g.
• Motor: Heavy-duty, TEFC motor provides years of trouble-free operation.
• Drives: Direct or belt drive units available. Belt models contain a variable pitch drive.
• Propeller: High performance dynamically balanced propeller for ideal performance and efficiency.
• Housing: Extra durable galvanized steel with vertical, interlocking welded seams.
• Hood: Heavy gauge galvanized hood utilizes interlocking, welded ribs. Hinged to provide easy access to motors, belts, pulleys, and propellers.
• Design: Deep spun venturi panel provides superior strength and greater efficiency.
• Finish: Exterior polyurethane coating for a sleek look and corrosion resistance.
• Fan Base: All welded fan base assembly for extra strength.
• Pillow Block Bearings: Self-aligning with a basic rating fatigue life (L10) more than 80,000 hours at each fan’s maximum operating speed when mounted in a horizontal configuration.
• Bird Screen: 1/2” mesh galvanized bird screen, installed vertically on the base perimeter.

Options

• Roof Curb
•  Dampers
  • Gravity
  • Motorized
• Safety guards
  • Inner Guard (motor-side)
  • Outer Guard (bird screen or insect screen)
• Filters (Hood mounted, supply only)
• Insulation – 1/2” or 1-1/2” thick
• Duct Drop
•  Coatings
  • Epoxy
  • Polyurethane
  • Custom (color-to-match)
• Disconnect switches
  • NEMA 3R – exterior mount, rain-tight
  • NEMA 4 – water-tight and dust-tight
  • NEMA 4X
• Extended lubrication lines
• High wind tie-down points
